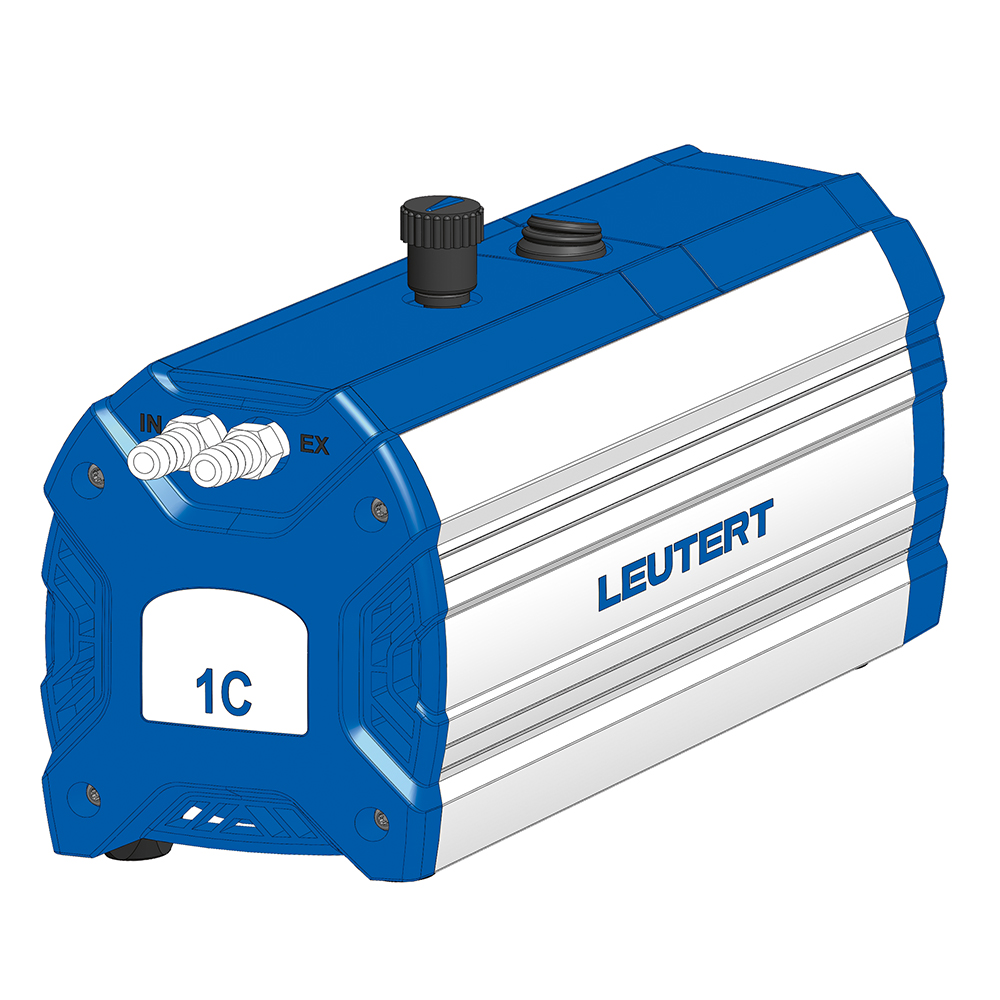

Laboratory Vacuum Pump
A number of PVT laboratory operations require the use of vacuum pumps. Leutert diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The two-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum.
All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE-sandwich diaphragms increase reliability and extend operating life. The pump is equipped with a gas ballast valve for continuous condensate purge increasing the pumping capability of condensible vapors. It features slim design for space-saving installation and good vacuum performance. A manual vacuum regulator valve with dial gauge for adjustment of pumping speed and ultimate vacuum is available as accessory.
Examples of operation
- outstanding chemical resistance and superior vapor tolerance
- convenient, quick and simple to use due to the top mounted power switch
- optimized vacuum even with gas ballast for continuous purge
- whisper quiet and very low vibration
- maintenance-free drive system and proven long diaphragm life
| Number of heads / stages: | 2 / 2 |
| Inlet & outlet connection: | Hose nozzle DN 8-10 mm |
| Pumping speed at 50/60 Hz: | max. 0.44 / 0.53 cfm (0.75 / 0.9 m³/h), ISO 21360 |
| Ultimate vacuum (absolute): | 9 Torr (12 mbar) without gas ballast 15 Tor (20 mbar) with gas ballast |
| Permissible pressure (absolute): | max. 17.5 psi (1.2 bar) at gas ballast valve |
| Max. back pressure (absolute): | 1.1 bar |
| Mains voltage: | 230 V AC, 50/60 Hz, 0.8/0.6 A |
| Rated motor power: | 0.08 hp (0.06 kW) |
| Rated motor speed at 50/60 Hz: | 1,500 / 1,800 min-1 |
| Noise level at 50 Hz: | typ. 45 dB(A) according to DIN 45635 |
| Degree of protection: | IP 40 |
| Temperature range: | operation 10 to 40°C, storage -10 to 60°C |
| Dimensions (L x W x H): | approx. 12.3” x 4.8” x 6.7” (312 mm x 121 mm x 170 mm) |
| Weight: |
14.8 lbs (6.7 kg) |
| ATEX conformity (only 230V): | II 3G IIC T3 X Internal Atm. only |
