Digital Pressure Indicator (DPI) – Advanced Engine Peak Meter

Digital Pressure Indicator DPI

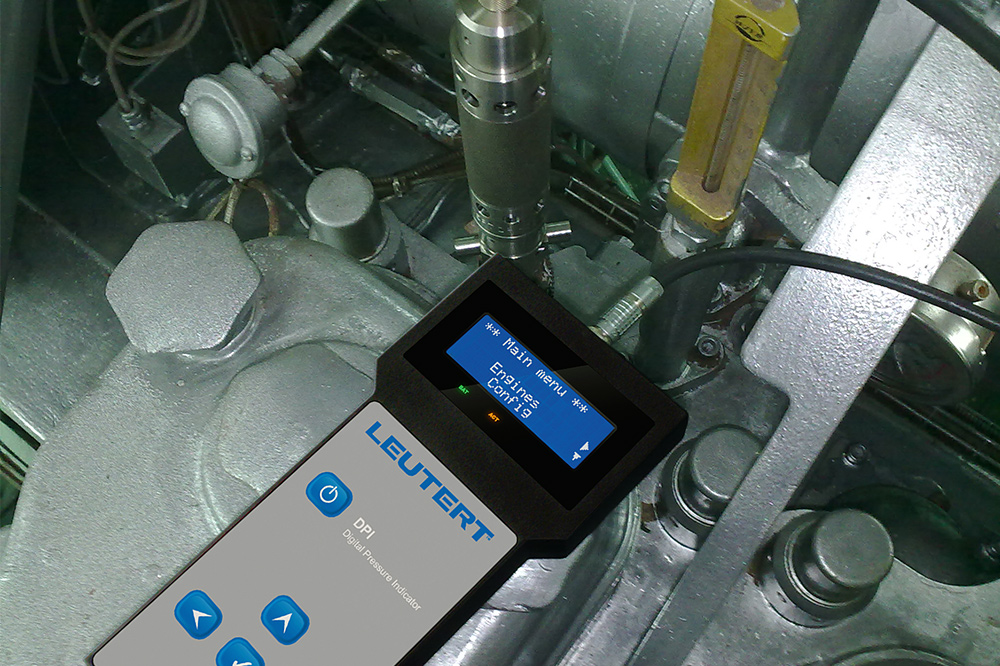

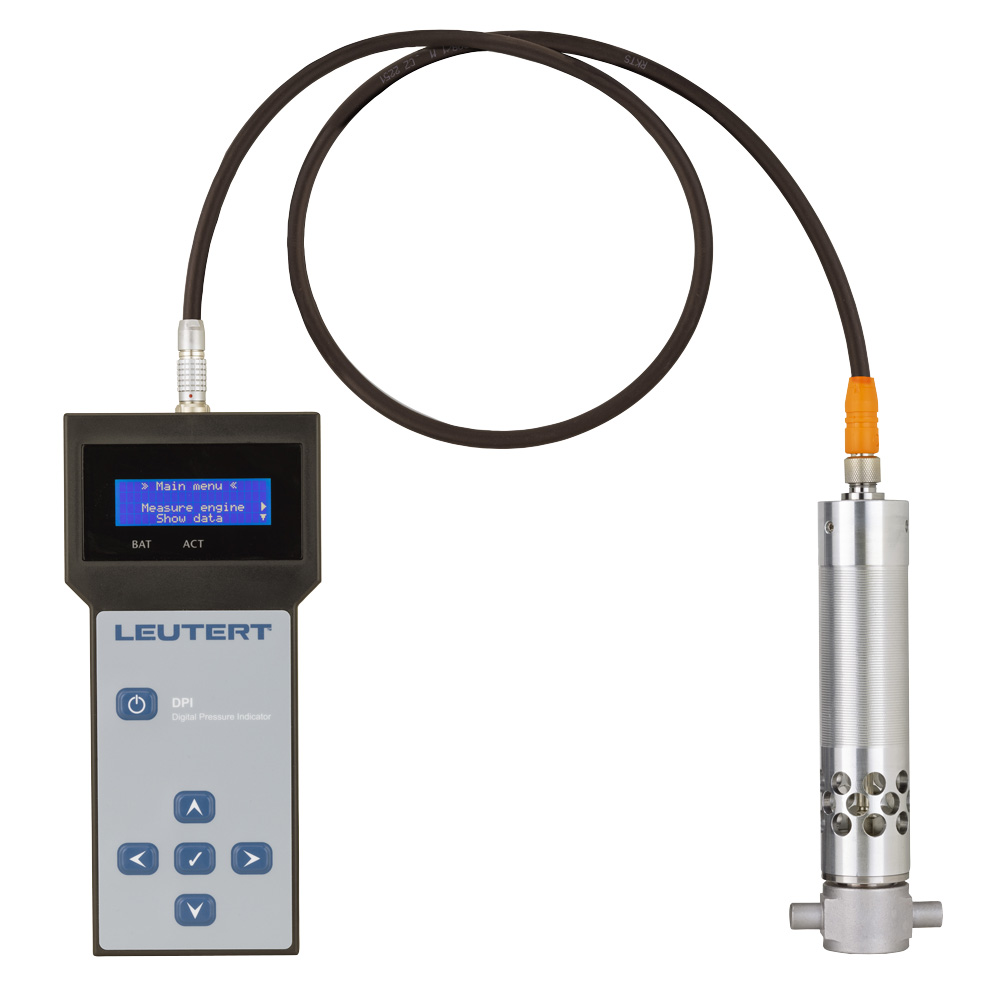

The Digital Pressure Indicator (DPI) is a cutting-edge engine peak meter developed to measure dynamic cylinder pressures and provide detailed combustion curve analysis for large two- and four-stroke diesel engines. Measurements are carried out directly through the indicator valve, ensuring precision and reliability.

Why Choose the DPI Engine Peak Meter?

As a modern MIP system, the DPI combines advanced technology with an outstanding price-to-performance ratio. This engine peak meter delivers highly accurate data that is essential for:


  • Optimizing engine performance
  • Increasing fuel efficiency
  • Reducing emissions


Its intuitive handling allows even inexperienced operators to take precise measurements within minutes, making the DPI a truly user-friendly solution.

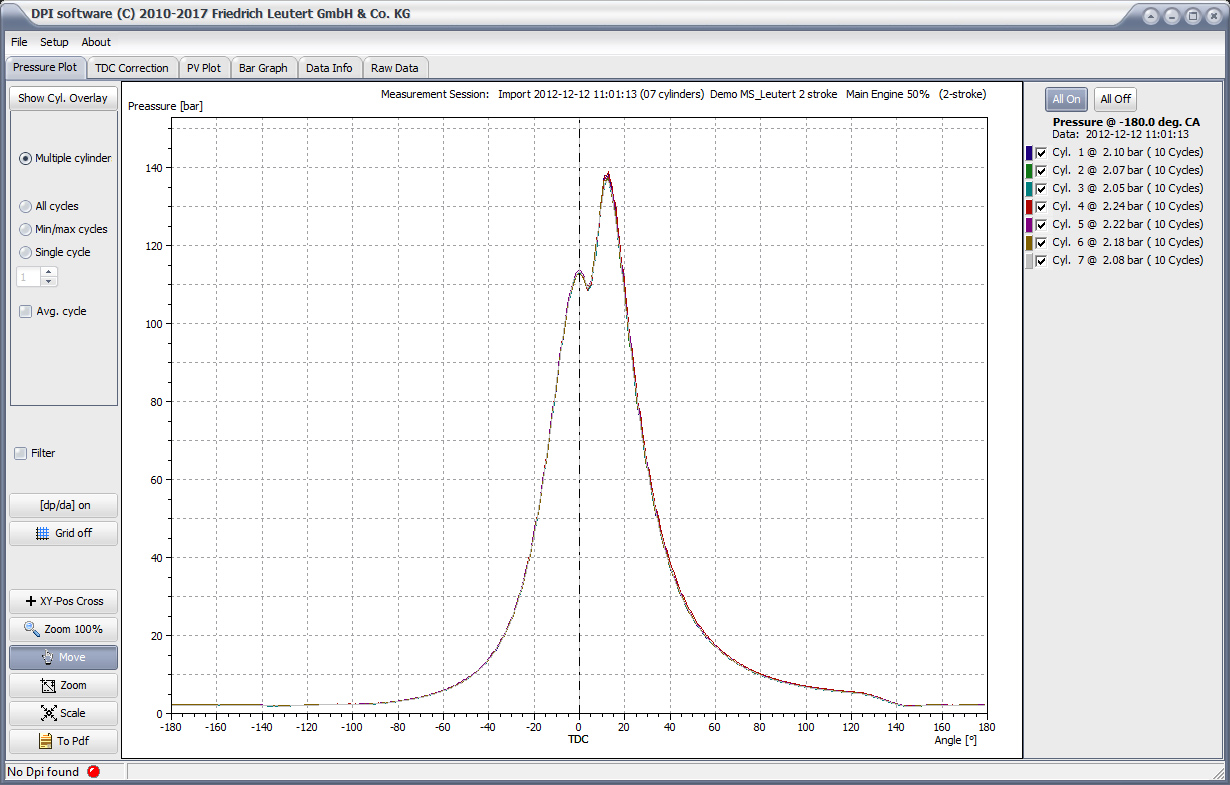

Engine Peak Meter Software

The included DPI software turns this engine peak meter into a complete performance tool. With just a few clicks, users can:


  • Evaluate results
  • Transmit data (e.g., to superintendents)
  • Archive measurement reports
  • Access additional analysis features

Key Features of the DPI Engine Peak Meter

  • No TDC sensor installation required for power calculation
  • Plug-and-play hardware and software minimize user-related errors
  • Excellent price-to-performance ratio
  • Unlimited software copies – no licensing restrictions
  • Rechargeable batteries for cost efficiency
  • Continuous operation for more than 8 hours
  • High accuracy with 0.1° resolution
  • Equipped with a premium-quality sensor





Pressure range: 0 to 300 bar
Engine range: 50 to 5,000 rpm
Battery capacity: > 8 hrs
Operating temperature: Hand-held Unit: 0 to 55 °C
Pressure Sensor: 0 to 350 °C (short-term higher)
Weight (approx.): Hand-held Unit: 0.44 kg
Pressure Sensor: 0.47 kg
Dimensions: Hand-held Unit: 211 x 100 x 45 mm
Pressure Sensor: Ø 35 mm x 185 mm
Accuracy < 0.5%
A/D sampling precision: 16 bit (0.0092 bar/sample)
Memory capacity: 50 engines, 24 cylinders each
Battery type: Standard AA (4 pcs.), rechargeable
Battery charging: via USB or adapter
Display: 20 x 4 alphanumeric, backlight, high contrast
Standard connection: W 27 x 1/10"
