Torque Measuring System TORXmeter®
The TORXmeter® is a permanent shaft power measuring system basically designed for seagoing vessels, but may be used also for other engine-driven applications. Provided data are vital for evaluating engine performance in relation to power consumption (burning of fuel), thus helps to improve engine efficiency and to reduce fuel costs.

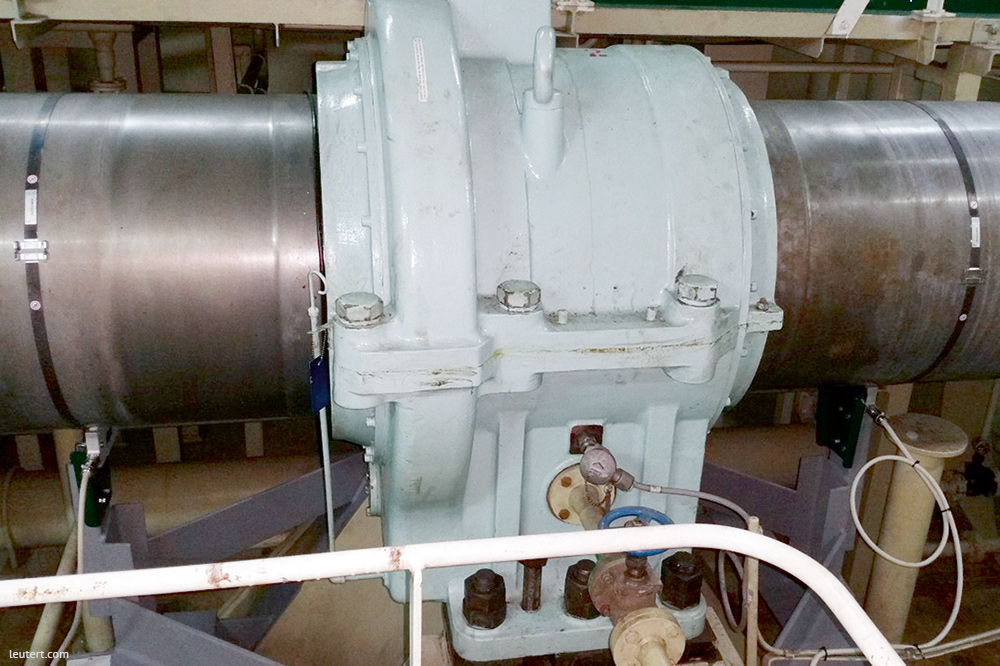

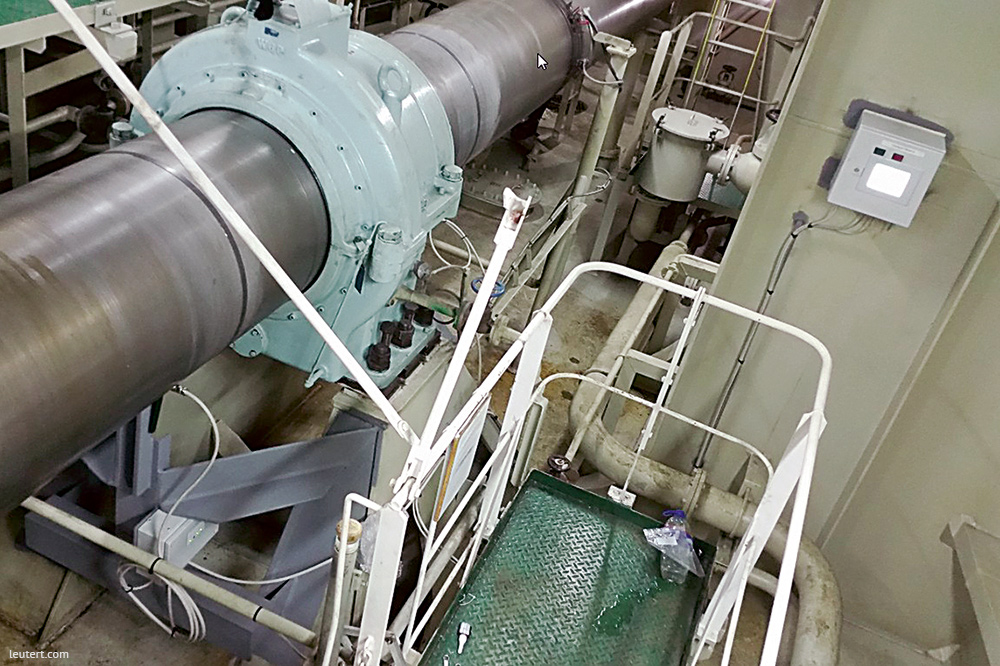

The TORXmeter® is easy to install and requires no electronic/electric parts on the shaft. Only two magnetic sensor belts in a distance of 1.5 to 2 m have to be installed on the shaft. The system works contact free, which makes it rugged and more durable than competitive systems.
Simple installation and calibration makes presence of a service technician unnecessary and is usually done by the vessel’s crew.
Data transmission to additional systems, e.g. vessel’s automation system, can be easily done via 4 to 20 mA outputs and NMEA Protocol (RS485). Installation of several repeater displays (engine control room, bridge) is possible.
The intuitive touch screen interface of the terminal box allows easy operation, permanent display, and automatic reports of following values:
- Shaft power (kW)
- Shaft speed (RPM)
- Torque (kNm)
| Power supply: | 100/240 VAC, 50/60Hz, 16 A |
| Temperature range: | Terminal box and MWE box 0 to 60°C |
| EXFR sensors and belts -40 to 85°C | |
| Shaft diameter: | 250 to 1,000 mm; < 250 mm on request |
| Sensor measuring accuracy: | < 0.1 % FS |
| Speed range: | up to 250 rpm; > 250 rpm on request |
| Torque/RPM measurement: | high-resolution sensor, contact-free |
| Analogue outputs: | 3 x 4 to 20 mA signals for torque, shaft power & speed |
| Alarm outputs: | Engine overload, system error (potential free contacts) |
| Interface: | RS485 (NMEA 183) |
| Protection class: | Terminal box and MWE box IP54 |
| EXFR sensors and belts IP67 | |
| Firmware update: |
via USB stick (update file can be sent via e-mail) |
| Display: | Illuminated touch screen |
| Optional equipment: | Repeater display for ECR or bridge installation |
